TECHNICAL SPECIFICATIONS

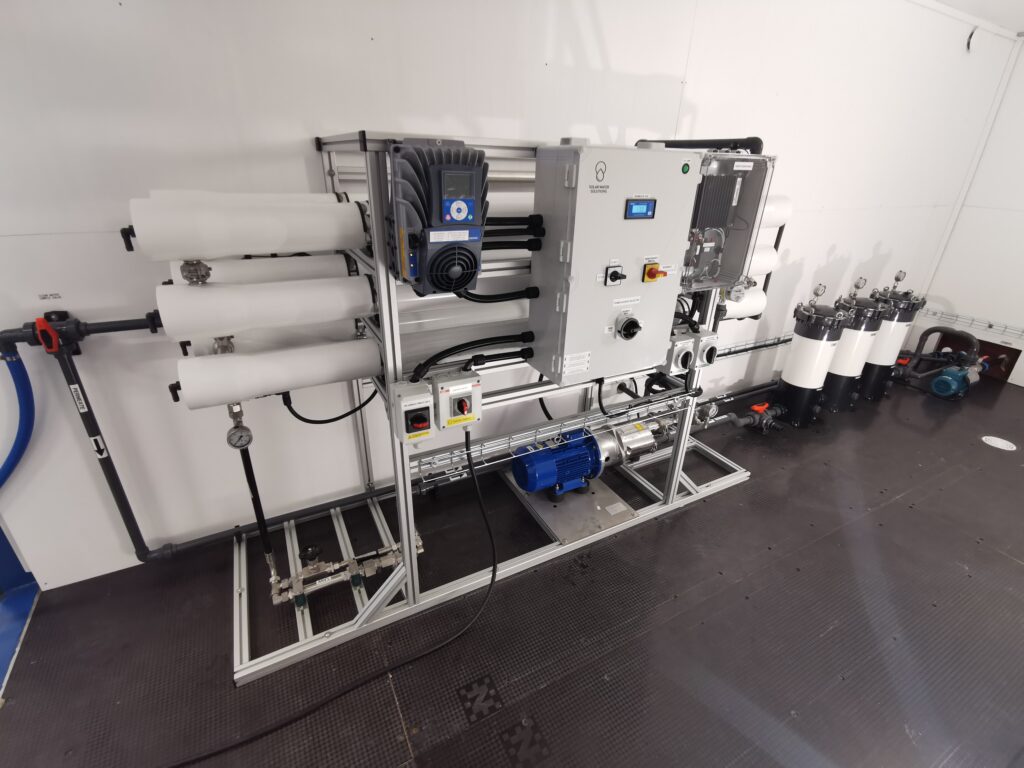

SolarRO BW 80

Brackish Water Reverse Osmosis System

3.6 m³/h

52 %

5.1 kWh

1.4 kWh/m³

Make Clean Water with Solar. Cut Costs. Build Resilience.

Technical Specifications

Product water flow rate*	3.6 m³/h
Product water quality*	TDS < 90 mg/L, pH 7
Raw water feed flow rate	7 m³/h
Recovery rate*	60 %
Minimum salt rejection	99.5 %
Brine flow rate*	3.4 m³/h (450 gal/h)
Brine quality*	TDS 4800 mg/L
System pressure	10 – 14 bar
High-pressure pump	SS 316L centrifugal multi-stage (5.5 kW)
HPP motor	5.5 kW
Raw water feed pump**	SS 316L (1.5 kW)
Pressure vessels	2 x 8080, FRP composite, single pass
RO Membranes	4 x 8040, BW30HRLE or equivalent
Cartridge pre-filtration	PP 20” 5-element, 100, 25, 3 micron
Controller	Variable frequency solar drive (15 kW)
Specific energy***	1.4 kWh/m³
Solar PV input power **	8.9 kWp (minimum), 600 – 800 VDC
DC power supply requirement (solar PV)	600 – 800 VDC
AC power supply requirement (grid)	380 – 480 VAC / 50 – 60 Hz
* Test Conditions: Brackish water TDS 2000 mg/l, pH 7-8, T 25°C, system pressure 13 bar Raw water pump model and characteristics subject to change depending on site-specific requirements * Raw water feed pump not included Specifications and system design are subject to change without prior notice.

Operating Conditions

Raw water source	Lake / river / brackish borehole
Raw water TDS range	500 – 7000 mg/L
Raw water temperature range	5 – 45 °C
Air temperature range	0 – 45 °C
Raw water feed pressure range	0,5 – 6 bar
* If these values for feed water are exceeded, appropriate substance removal prefiltration must be installed before the unit
