TECHNICAL SPECIFICATIONS

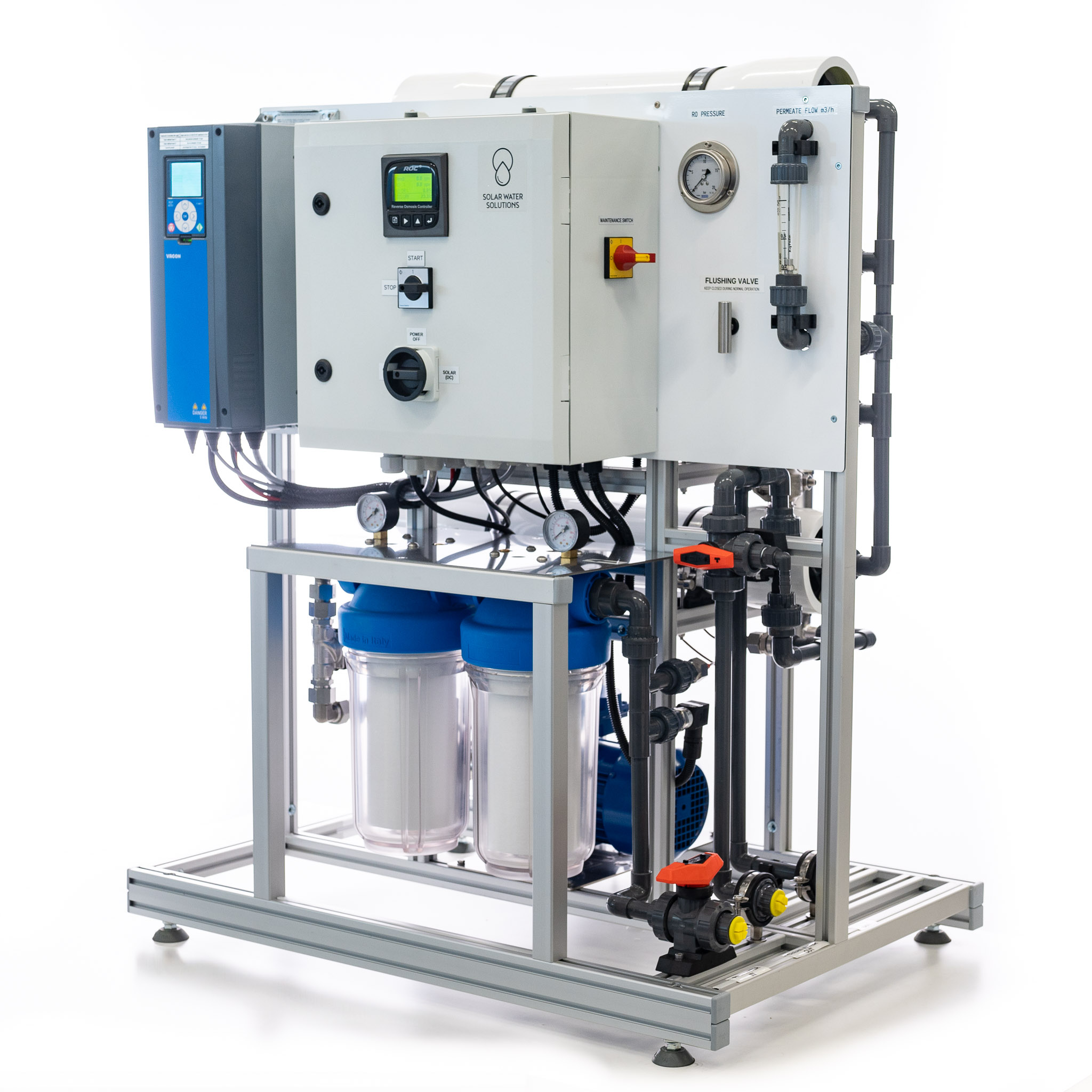

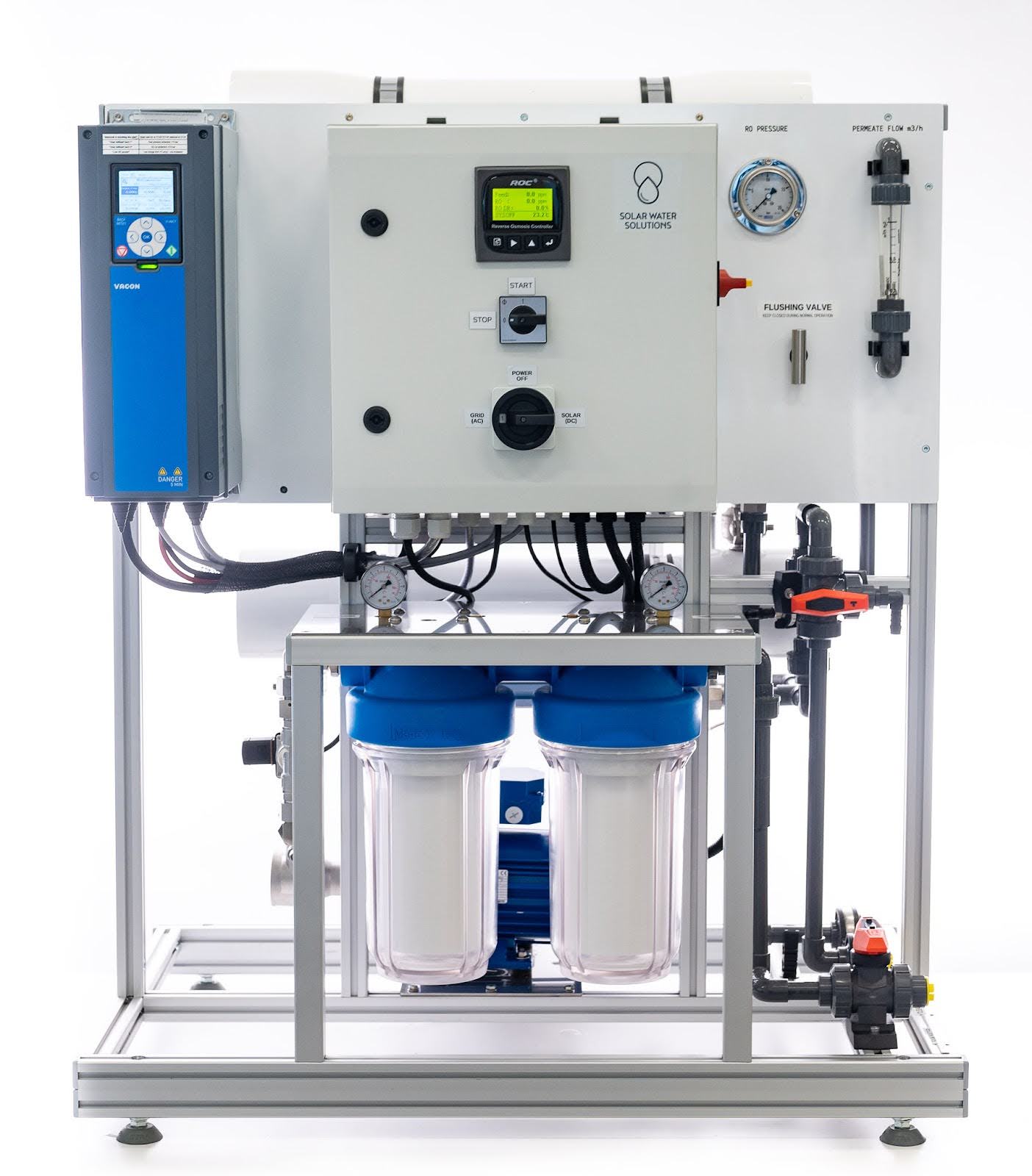

SolarRO BW 120

Brackish Water Reverse Osmosis System

5 m³/h

57 %

7 kWh

1.2 kWh/m³

Make Clean Water with Solar. Cut Costs. Build Resilience.

Technical Specifications

Product water flow rate*	5 m³/h
Product water quality*	TDS < 50 mg/L, pH 7
Raw water feed flow rate	8.8 m³/h
Recovery rate*	57 %
Minimum salt rejection	99.5 %
Brine flow rate*	3.8 m³/h
Brine quality*	TDS 4600 mg/L
System pressure	10 – 14 bar
High-pressure pump (HPP)	SS 316L centrifugal multi-stage or equivalent (5.5 kW)
HPP motor	5.5 kW
Raw water feed pump**	2.2 kW, SS 316L
Pressure vessels	3 x 8080, Composite
RO Membranes	6 x 8040 BW30HRLE-440 or equivalent
Cartridge pre-filtration**	Cartridge 5×40″ 25, 3 micron
Controller	Variable frequency solar drive (15 kW)
Specific energy***	1.2 kWh/m³
Energy consumption*	6.0 kWh
DC power supply requirement (solar PV)	600 – 800 VDC
AC power supply requirement (grid)	380 – 480 VAC / 50 – 60 Hz
* Test Conditions: Brackish water TDS 2000 mg/l, pH 7-8, T 25°C, system pressure 9 bar Raw water pump model and characteristics subject to change depending on site-specific requirements * Raw water feed pump included Specifications and system design are subject to change without prior notice.

Operating Conditions

Raw water source	Lake / river / brackish borehole
Raw water TDS range	500 – 7000 mg/L
Raw water temperature range	5 – 45 °C
Air temperature range	0 – 45 °C
Raw water feed pressure range	2 – 5 bar
* If these values for feed water are exceeded, appropriate substance removal prefiltration must be installed before the unit
